TowerTamers Project Status

Project Summary

TowerTamers is a reinforcement learning (RL) project focused on training an agent to navigate the Obstacle Tower environment, a 3D procedurally generated tower with increasing difficulty. We implement a custom Proximal Policy Optimization (PPO) algorithm enhanced with frame stacking and reward shaping to improve exploration and movement, alongside a Stable-Baselines3 PPO baseline for comparison. Our goal is to enable the agent to climb floors effectively, adapting to the environment’s challenges using both tailored and off-the-shelf RL techniques.

Approach

Our implementation uses Proximal Policy Optimization (PPO), a policy gradient method that balances stability and sample efficiency. The algorithm consists of several key components:

Core Algorithm

• Samples actions from a policy π(a

  s)

• Optimizes a clipped surrogate loss: -min(r_t * A_t, clip(r_t, 1-ε, 1+ε) * A_t)
  • Where r_t = π(a_t|s_t) / π_old(a_t|s_t)
  • A_t is the Generalized Advantage Estimate (GAE)
  • ε=0.1
• Value function minimizes MSE(V(s_t), R_t), where R_t is the discounted return
• Includes entropy bonus -0.01 * H(π) to encourage exploration [Schulman et al., 2017]

Custom Implementation Details (src/train.py)

• Input: 4 stacked RGB frames (shape [12, 84, 84])
• Output: 54 discrete actions via ActionFlattener for MultiDiscrete action space
  • Covers movement, rotation, jump, and interaction
• Reward shaping:
  • +0.01 for walking (move_idx != 0)
  • -0.005 for jumping (jump_idx == 1)

Network Architecture

• Four convolutional layers reducing [12, 84, 84] to [64, 5, 5]
• 1024-unit FC layer
• Training parameters:
  • Steps: Up to 1M
  • Learning rate: 1e-4
  • Epochs: 10
  • Batch size: 128

Stable-Baselines3 Version (src/train2.py)

• Uses “MlpPolicy”
• Flattens observations to [21168] (due to time constraints)
• Similar hyperparameter adjustments to custom implementation

Evaluation

We evaluated both implementations with the following results:

Custom PPO (src/train.py)

• Training duration: ~10k steps
• Results:
  • Episode rewards plateau at 1.0 or 0.0
  • Indicates sparse feedback
• Qualitative observations:
  • Frequent jumping behavior
  • Occasional walking
  • Limited progress

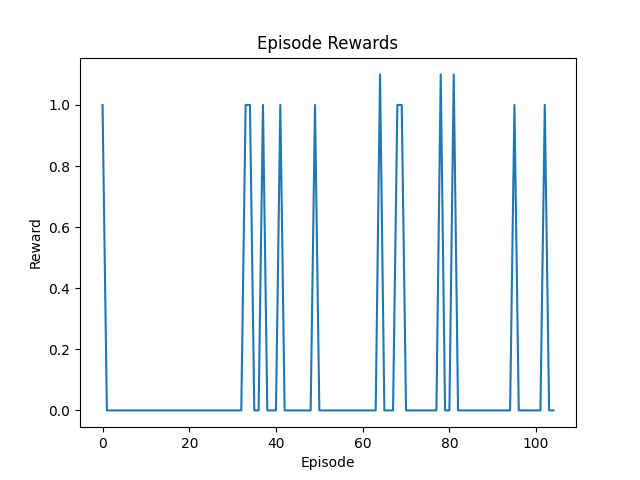

Figure 1: Episode rewards for custom PPO over ~10k steps, plateauing at 1.0 or 0.0.

Figure 2: Screenshot of the custom PPO agent, often jumping without progress.

Stable-Baselines3 PPO (src/train2.py)

• Training duration: ~10k steps
• Results:
  • Rewards range between 0.0-1.0
  • Similar performance issues to custom implementation

Figure 3: Episode rewards for Stable-Baselines3 PPO, showing similar low performance.

Remaining Goals and Challenges

Planned Improvements

1. Reward Function Refinement
   • Add distance-based rewards for climbing
   • Explore additional reward shaping strategies
2. Implementation Updates
   • Switch to “CnnPolicy” in Stable-Baselines3
   • Extend training duration to 100k+ steps
   • Implement comprehensive success metrics
3. Evaluation Expansion
   • Quantify success rate (floors climbed)
   • Compare custom vs. Stable-Baselines3 performance

Current Challenges

Technical Issues

• Frequent Unity crashes
  • Possible memory/CPU constraints
  • Potential solutions:
    • Reduce frame stack size
    • Debug Unity logs

Learning Performance

• Slow learning progress
  • Expected with sparse rewards
  • Potential solutions:
    • Hyperparameter tuning
    • Larger clip range
    • Extended training duration

Time Constraints

• Limited evaluation runs
• Restricted hyperparameter exploration
• Planning additional runs post-deadline

Resources

• Obstacle Tower Environment - Core environment
• Stable-Baselines3 Documentation - Baseline PPO guidance
• PyTorch Documentation - Neural network implementation
• Schulman et al., 2017 - PPO algorithm details
